200m Small Crawler Mounted Water Well Drill Rig 1000-2000N.M Torque

small crawler mounted water well drill

portable water well drilling machine with warranty

2000N.M torque water well drill rig

Miejsce pochodzenia:

Chiny

Nazwa handlowa:

RanCheng

Orzecznictwo:

CE, ISO 9001:2000

Numer modelu:

RCS200C

Skontaktuj się z nami

Wniosek Cytat

Szczegóły produktu

Średnica wiercenia:

100-300mm

Max moment obrotowy:

1000-2000n.m

Way Way:

Zamontowany na gąsienicy

Gwarancja:

1 rok

Głębokość wiercenia:

100-200 metrów

Waga:

200-500 kg

Moc silnika wysokoprężnego:

22 KM / 16,2 kW

Wydobycie:

80-150 m

Silnik wysokoprężny:

22 KM

Zastosowanie:

wiercenie studni wodnych

Podkreślić:

small crawler mounted water well drill

portable water well drilling machine with warranty

2000N.M torque water well drill rig

Warunki płatności i wysyłki

Minimalne zamówienie

Cena

US $ 7000-8000

Szczegóły pakowania

Standardowa wysyłka

Czas dostawy

10-15 dni roboczych

Zasady płatności

T/T, Western Union

Możliwość Supply

100sets miesięcznie

ZAŁĄCZONE PRODUKTY

Wideo

Maksymalna głębokość 200m RCS200C Gąsienicowa gumowa mała wiertnica do studni

Najlepszą cenę

Wideo

Hydrauliczna maszyna wiertnicza wodna do 150 m głębokich studni nawadniających

Najlepszą cenę

Wideo

Easy Operation RCS200C Rubber Crawler Portable Drilling Rig With 150m Depth 450mm Diameter

Najlepszą cenę

Wideo

200m Small Water Well Rock Drilling Rig With 2000KG Hosting Capacity

Najlepszą cenę

Skontaktuj się z nami

Skontaktuj się teraz

Opis produktu

200m Small Crawler Mounted Water Well Drill Rig 1000-2000N.M Torque

Product Description

Name: 200m Small Crawler Mounted Water Well Drill Rig 1000-2000N.M Torque
Brand: Henan Rancheng Machinery Co., Ltd.
SKU: RCS200C
Price: 7,500.00 USD
Availability: InStock

The RCS200C is a compact water well drill rig equipped with a superior hydraulic propulsion system. This system provides stable torque to the drill string, reducing energy loss and enabling more precise drilling control. It features dual-mode operation with a mud pump and air compressor, offering flexible options for air, foam, or mud circulation to suit different formation types. Whether rotary or percussive drilling, this rig efficiently operates in a wide range of geological conditions, from soft soil and gravel to hard rock, with a drilling depth range of 0 to 200 meters. Its fully hydraulic configuration simplifies power transmission, reduces points of failure, and helps maintain stable progress on site.

Weighing approximately 2,000 kg and mounted on a rubber-tracked chassis, the RCS200C is easily towed by a standard pickup truck, eliminating the need for large transport vehicles and reducing logistics costs. Its diesel engine provides off-grid power, enabling operation in remote mountainous areas with limited electricity supply. Its size and maneuverability make it ideal for sites with narrow or restricted access. The drilling rig is widely used in water supply projects, agricultural irrigation wells, shallow geothermal facilities, exploration sampling wells, environmental monitoring wells and small-diameter micropile/foundation projects, providing versatile solutions for various site conditions.

Technical data

Model	RCS200C
Geology drilled	All kinds
Drill depth	200 m
Drilling Diameter	90 -300mm
Drill system and operation	Hydraulic
For rock	6-20F
Air consumption	17-35m³/min
Air pressure	1.7-3.0Mpa
Rotary head
Rotation Torque	4000-5000N.m
Rotation speed	80-200rpm
Lifting capacity	14000KGS
Pull down capacity	4000KGS
DRILL PIPE
Drill pipe length	2 meter
Drill pipe diameter	60/76/89 mm
MUD PUMP
Flow capacity	160 liter/min
working pressure	1.3MPA
DIMENSIONS
Transport size	230012001700mm
Weight	2000KGS
Diesel engine
Power	45KW Weifang Hengtong

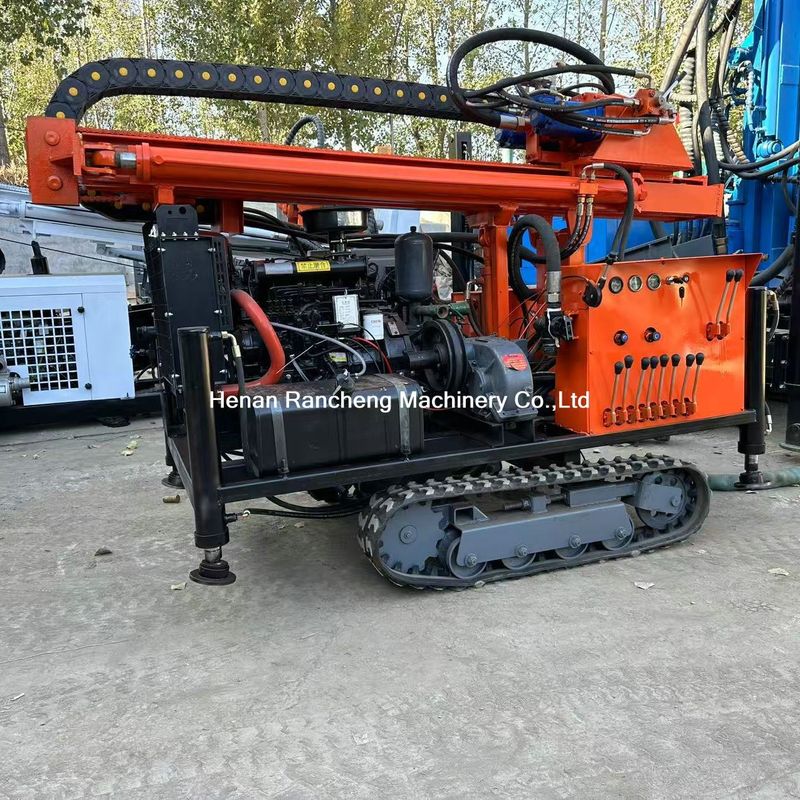

200m Small Crawler Mounted Water Well Drill Rig 1000-2000N.M Torque 0

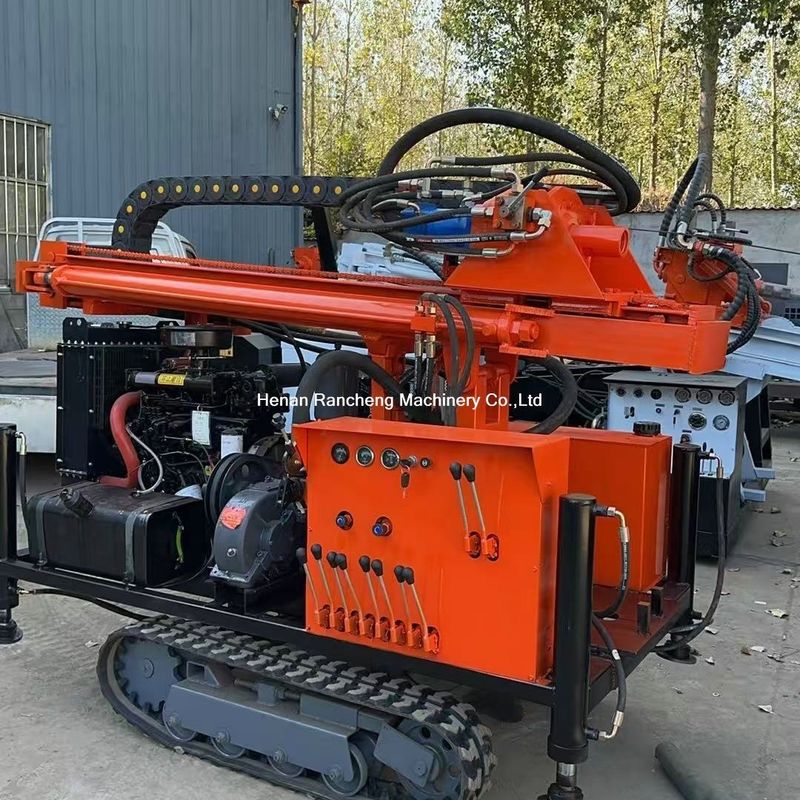

200m Small Crawler Mounted Water Well Drill Rig 1000-2000N.M Torque 1

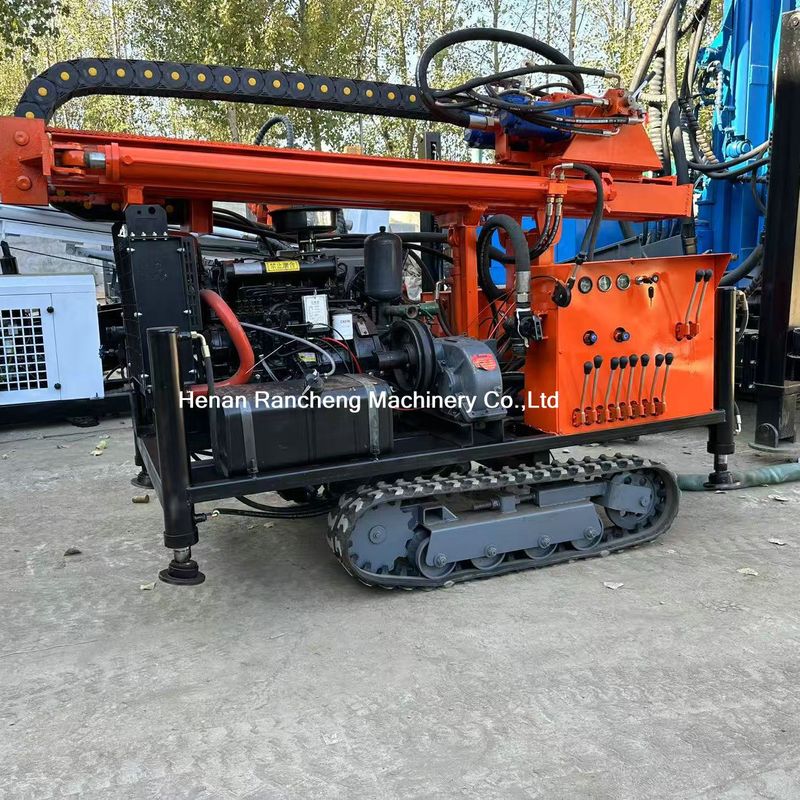

200m Small Crawler Mounted Water Well Drill Rig 1000-2000N.M Torque 2

200m Small Crawler Mounted Water Well Drill Rig 1000-2000N.M Torque 3
