Trailer Water Well Driling Rig With 132KW Cummins Diesel Engine For 600m Water Drilling
Product Description

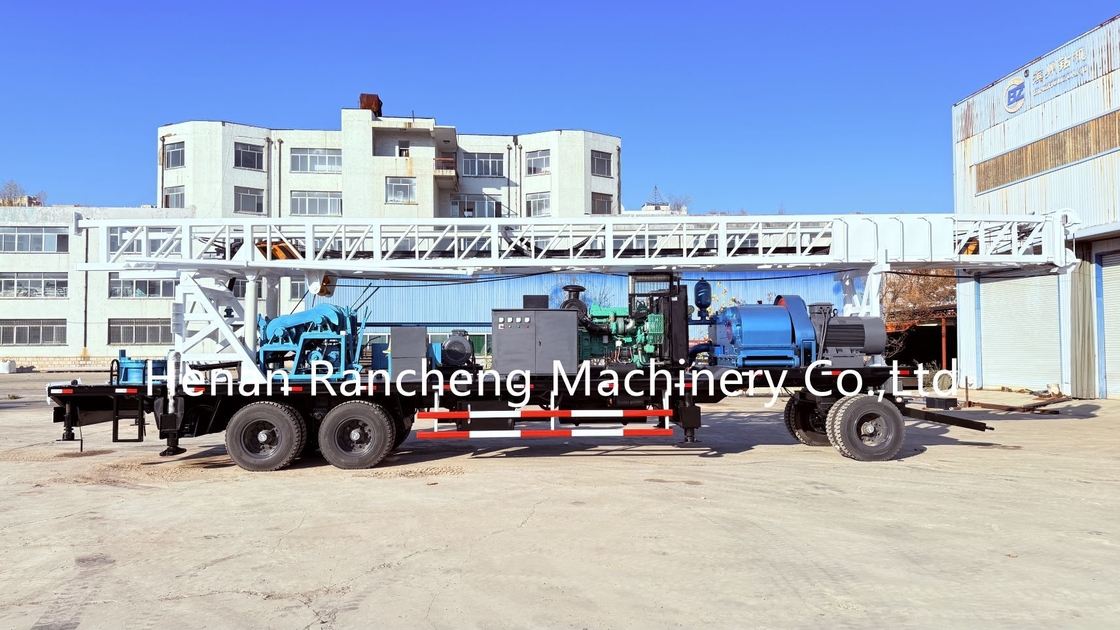

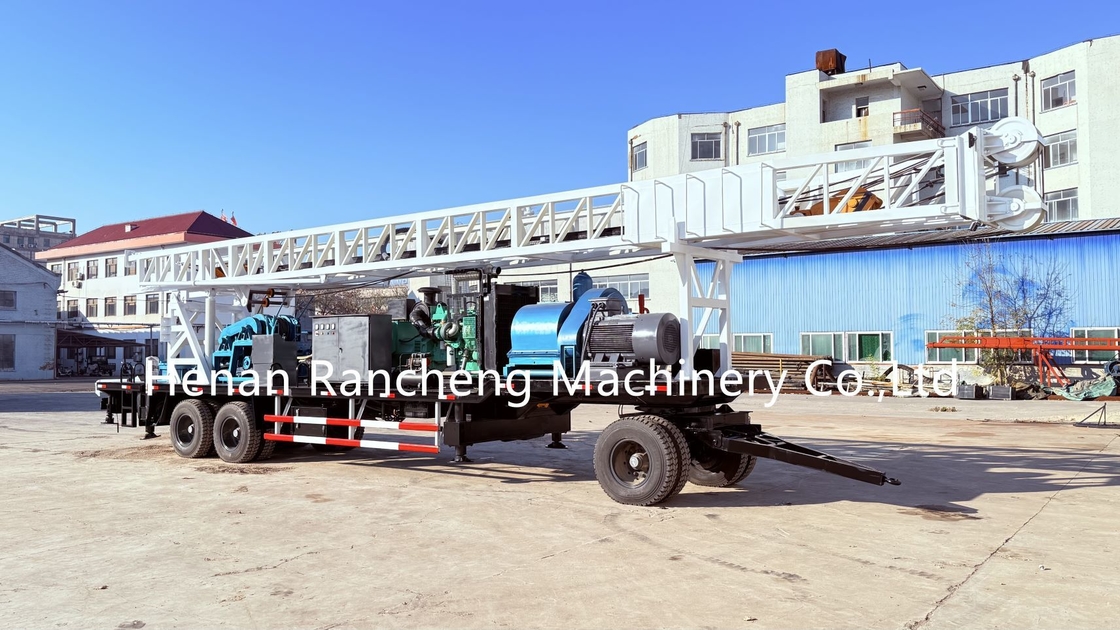

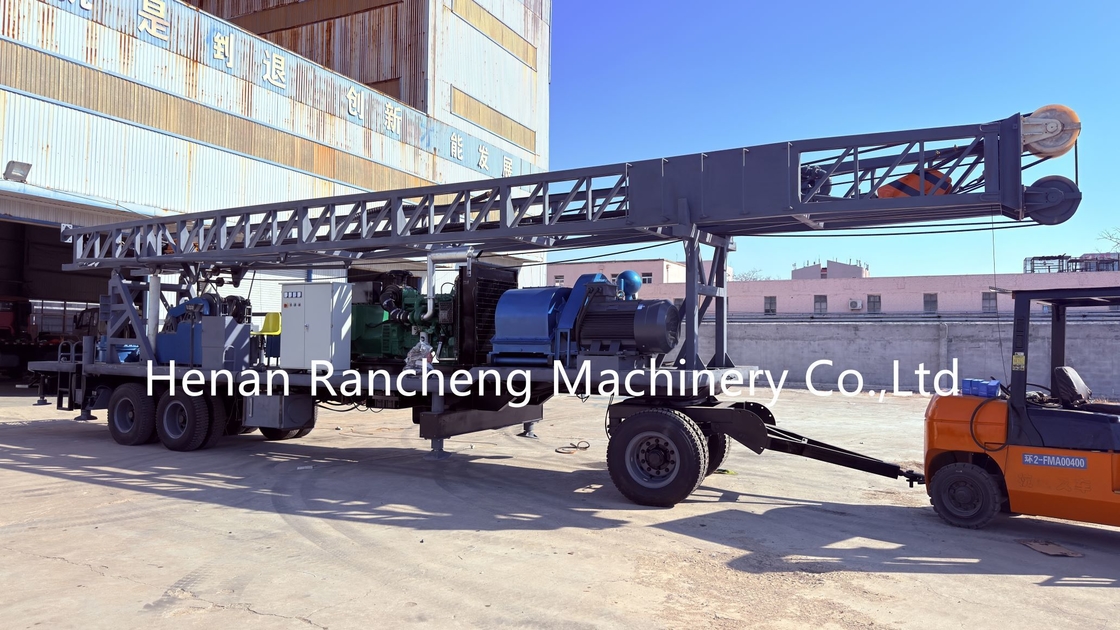

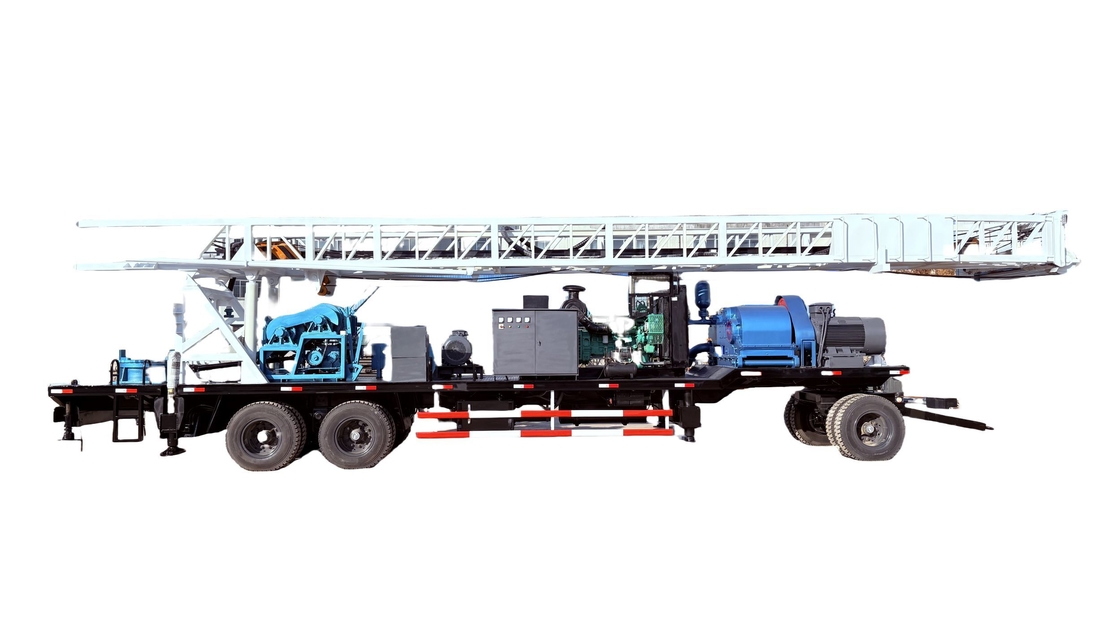

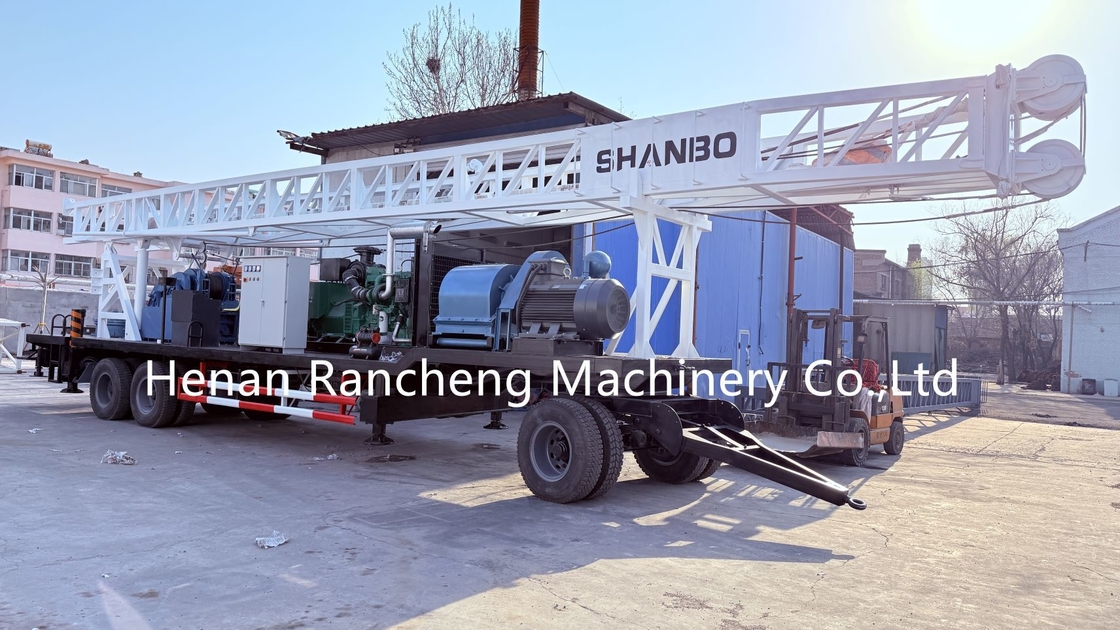

The RCBZ600T trailer-mounted drilling rig integrates a specialized chassis with an independent diesel generator, mud pump, dual hoist system, rotary table, and K-truss mast. Designed for rapid mobility, it can be towed by tractors or truck tractors. This rig features a complete configuration with simplified mechanical transmission, ensuring reliable operation and easy relocation. It efficiently handles drilling tasks up to 600m depth across diverse geological conditions. Standard delivery includes consumable parts for pumps, hoist handwheels, matching fork rests, and power station accessories.
Technical Parameters
| Nominal drilling depth |
600 m |
| Drill rod |
89mm(3-1/2") |
| Winch capacity |
Main hook lifting capacity (kN) |
300 |
| |
Auxiliary hook lifting capacity(kN) |
160 |
| |
Max-rope speed of main winch(m/min) |
100 |
| |
Max-rope speed of auxiliary winch(m/min) |
100 |
| Rotary table |
Inner diameter of turntable(mm) |
500 |
| |
Rotate speed (rpm) |
38;57;85 |
| |
Max-torque of turntable (kN.m) |
15 |
| Mast |
Effective height of drilling tower (mm) |
15255 |
| |
Rated load of drilling tower (t) |
36 |
| Drill tool |
Kelly(mm) |
108*108*10500 |
| |
Drill rod (mm) |
89*9000 |
| Mud pump |
Displacement (L/min) |
1000 |
| |
Pressure(Mpa) |
5 |
| Powertrain: Diesel engine |
Cummins 6BT5.9-C180 |
132KW/2200rpm |
| Transportation size |
Length (L)*Width (W)*Height (H) (mm) |
16700×2500×4100 |
Key Features
1. Robust Power System
Equipped with 132kW Cummins diesel generators offering substantial power reserves and stable, continuous operation.
2. Precision Leveling System
Four hydraulic outriggers operate independently or synchronously. Rear legs extend horizontally with mechanical locking to enhance drilling stability.
3. High-Torque Rotary Table
Lever-operated rotary table utilizes hypoid gear transmission, delivering 15 kN·m torque with reduced noise and improved durability.
Efficient Mud Circulation
High-flow reciprocating piston pump (1000 L/min at 5 MPa) ensures consistent performance with accessible maintenance points.
4. Dual Hoisting Capacity
Main and auxiliary winches employ mechanical planetary systems, providing 300 kN and 160 kN lifting capacity, respectively, for drilling and accident handling.
5. Structural Integrity
K-truss mast design supports 36-ton loads at 15,255mm working height, ensuring rigidity during deep drilling operations.
Application
The RCBZ600T trailer-mounted drill rig provides comprehensive drilling solutions for infrastructure, resource exploration, and sustainable energy projects, including high-rise building piling, bridge foundation construction, geological surveying in mining fields, port/dam reinforcement, water well drilling, and complex ground source heat pump (GSHP) borehole installations. Its optimized design—featuring tractor-towable mobility, 36-ton K-truss mast stability, 15kN·m torque rotary table, and 1000L/min mud pump—ensures efficient operation in diverse strata such as alluvial layers, fractured bedrock, and conglomerate formations up to 600m depth, delivering reliable performance across challenging job sites.
